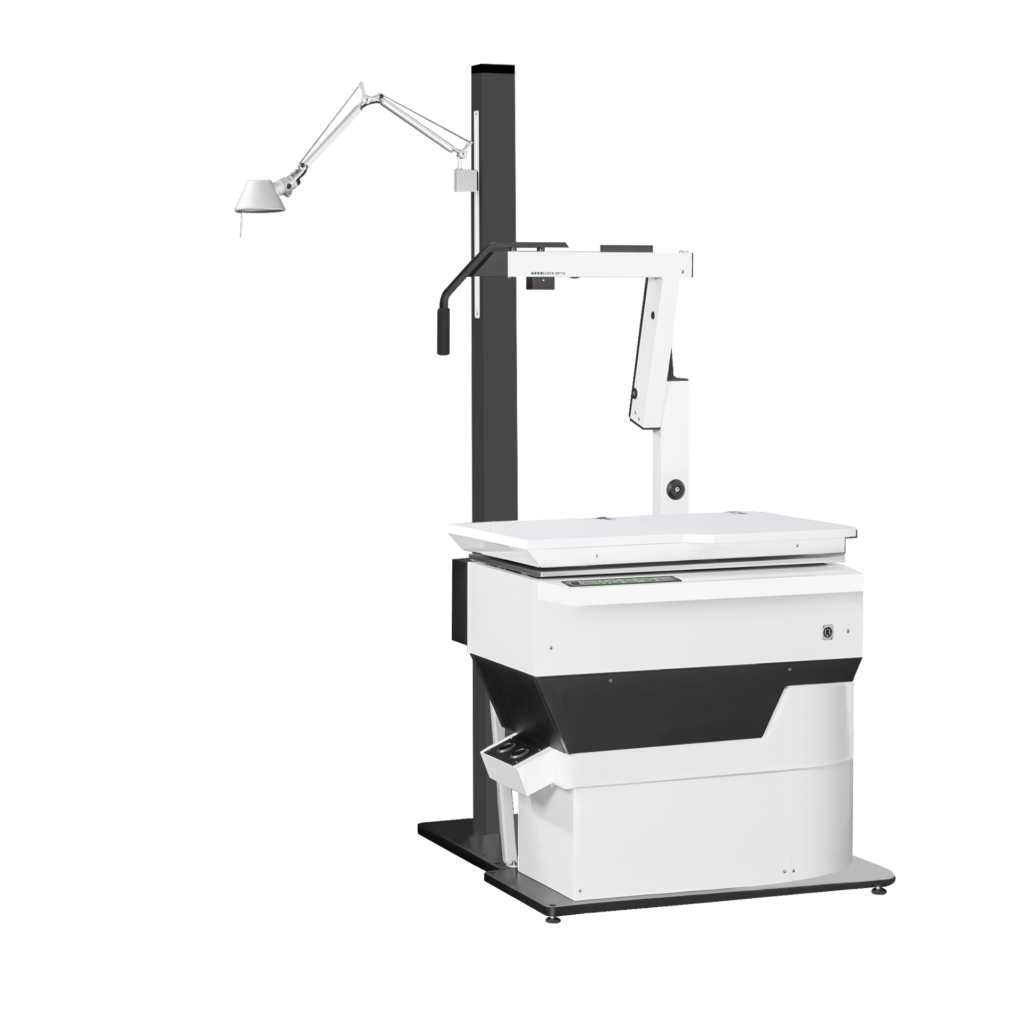

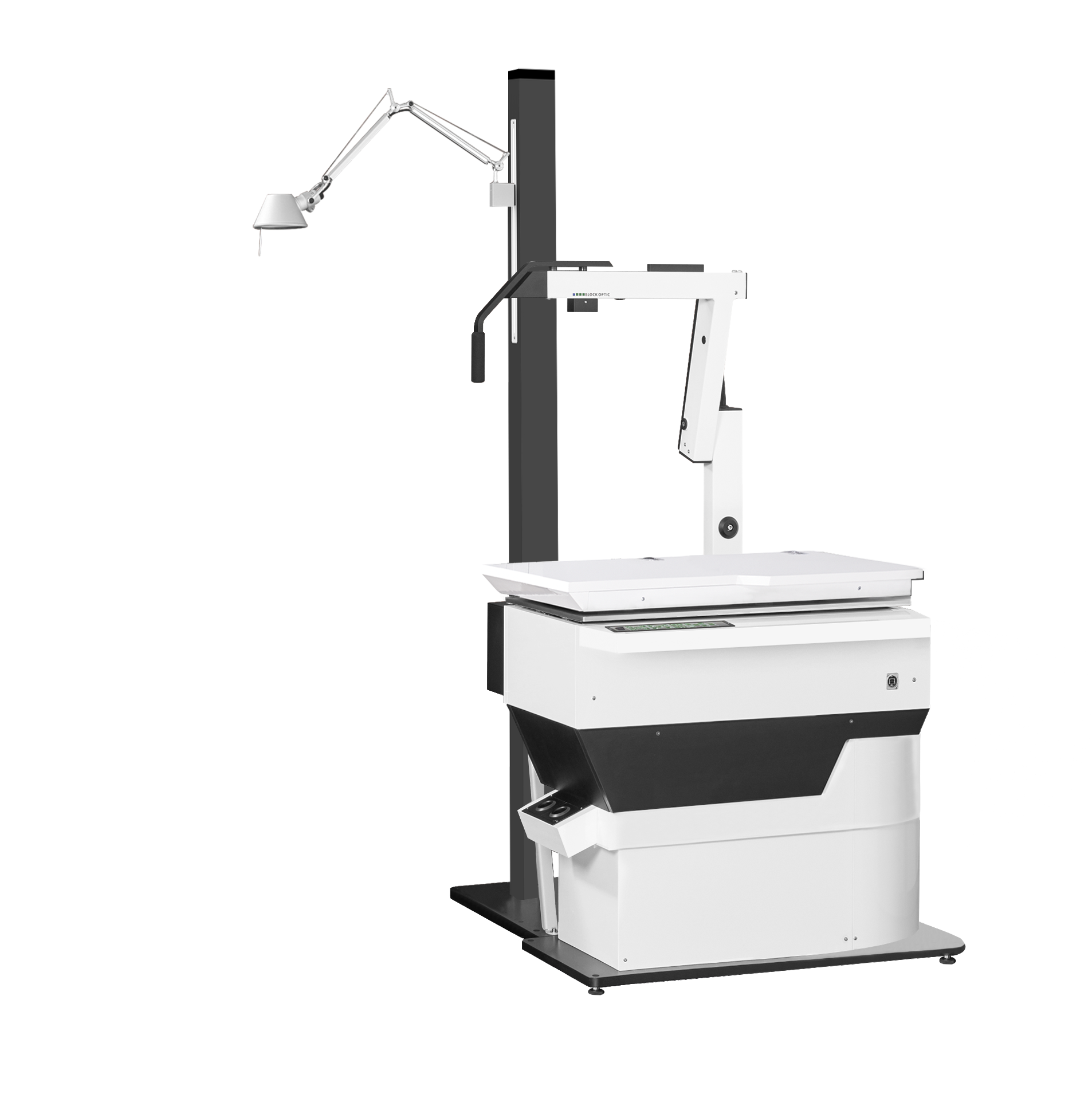

VarioCarat®

BLOCK OPTIC VarioCarat® combines modern technology, ergonomic functionality and an attractive design in an ophthalmological examination unit.

The modular construction allows the unit to be customized in terms of both technical features and color and surface design.

request now

The BLOCK OPTIC VarioCarat® is equipped with an electric motor and can be adjusted to any required examination height. It offers the ideal ergonomic workplace for 1 or 2 examination devices.

Patients of almost any height can be examined optimally.

  • Electromotive height adjustment – infinitely adjustable from approx. 75–96 cm
  • Device table widening – suitable for all device positions,
  • ideal for larger devices
  • Device table extension – optimized armrest for indirect ophthalmoscopy or small outpatient procedures on the slit lamp
Prospect
operating instructions

PDF download

Available as a right- or left-handed unit with many options.
Features of the BLOCK OPTIC VarioCarat®:

  • Single or two-position telescopic table – manual or motorized operation
  • Phoropter rail – manually or electrically adjustable
  • physiological phoropter arm – pre-tilted, with or without stepless inclination
  • Multifunctional column for function light, flat screen monitor holder, flat screen monitor
  • and projector mounts
  • Comfort electronics for controlling light, darkening, patient chair and visual character display (optional)
  • Antibacterial membrane keyboard – with or without lighting
  • Charging case for ophthalmologic hand-held devices
  • Waveguide for ophthalmologic hand-held devices
  • Wireless chair movement
    for easy examination of wheelchair patients

INDIVIDUALITY IS IMPORTANT TO US

  • Custom plastic coating – available in numerous colors
  • Custom veneer finish – to match the design of your practice
  • Desks – optionally with or without electric height adjustment
  • Customized solutions – customer-specific designs and adaptations to the series are possible at any time

Request your non-binding offer

Our field service will be happy to advise you in person.

PROPERTIES

Length
Depth 1st item
Depth 2nd item
Height adjustment
Standard height
Weight
Rated input voltage
Protection requirement
Protection class
Protection type
Power input

1020mm
1384mm
1769mm
750 – 960mm
860mm
approx. 160 – 220kg
230 V, 50/60Hz
EMVG/DIN EN 60601-1-2
MPG 1
IP 20
ca. 1400 VA

Right-hand version with special notching system
