Vision testing device

Polaphor® HD

innovative – precise – diverse

Suitable for expert reports
Polaphor® HD
Ophthalmology made in Germany.
Polaphor® HD

Ppolaphor® HD, an innovative eye test device, consists of a high-resolution flat screen combined with a powerful, integrated computer that provides the basis for unlimited testing options.

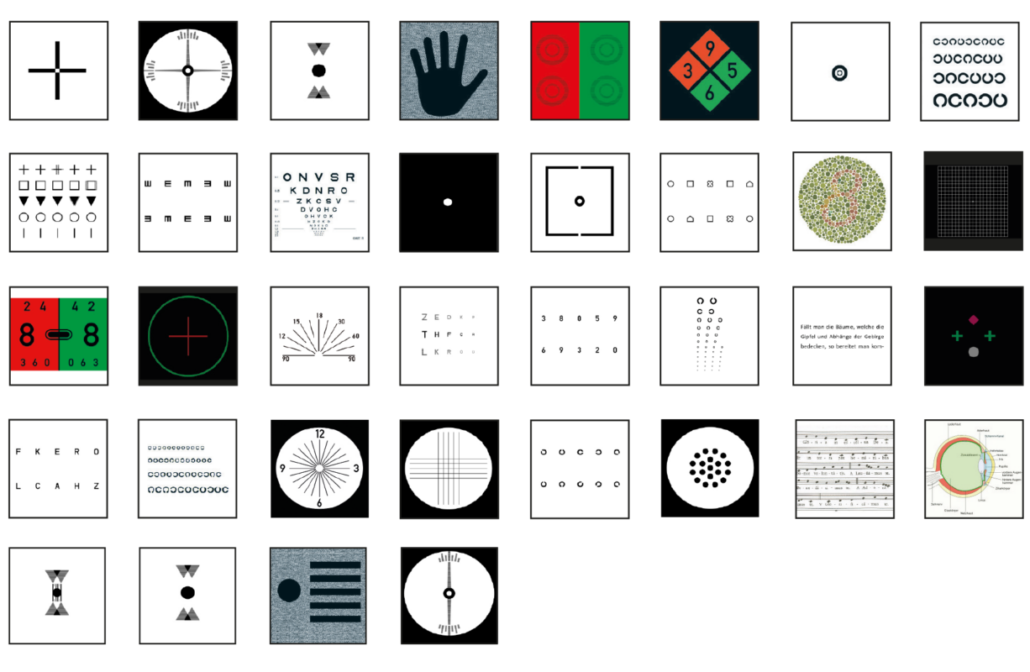

The Polaphor® HD offers the following test programs:

  • Linear or circular polarization
  • Single, series and group display
  • Mirror reading of the optotypes
  • Red, green alignment
  • Random generator can be switched on
  • Multilingual menu navigation
  • Silent operation and quick test field change
  • Many optional extensions available
  • Control via operating tablet and the “PhorControl” app, optionally with remote control
  • Display of Landolt rings according to DIN EN ISO 8596 and DIN 58220-3
  • Optional connection to selected electric phoropters Nidek, Topcon, Visutron, etc.
Polaphor® HD

Operation

  • is done via a separate tablet using the “PhorControl” app

Android

  • or optionally via a remote control
Polaphor® HD
wall bracket included

wall bracket included

optionally with stand

optionally with stand

Properties

Inspection distances3- 7 m
Visibility levels0.05- 2.0, logarithmic, decimal or customized
Polarization direction45° / 135° linear or circular
Visible areaapprox. 531 x 298 mm
Power supply230 V, 50 Hz
Dimensions (incl. wall bracket)approx. 642 x 440 x 235 mm
Weightapprox. 14 kg
