Examination unit

Innovario®

BLOCK OPTIC Innovario® combines modern technology, ergonomic functionality and appealing design to create an ophthalmic examination unit of the highest quality.

Innovario®
Ophthalmology made in Germany.
Innovario®

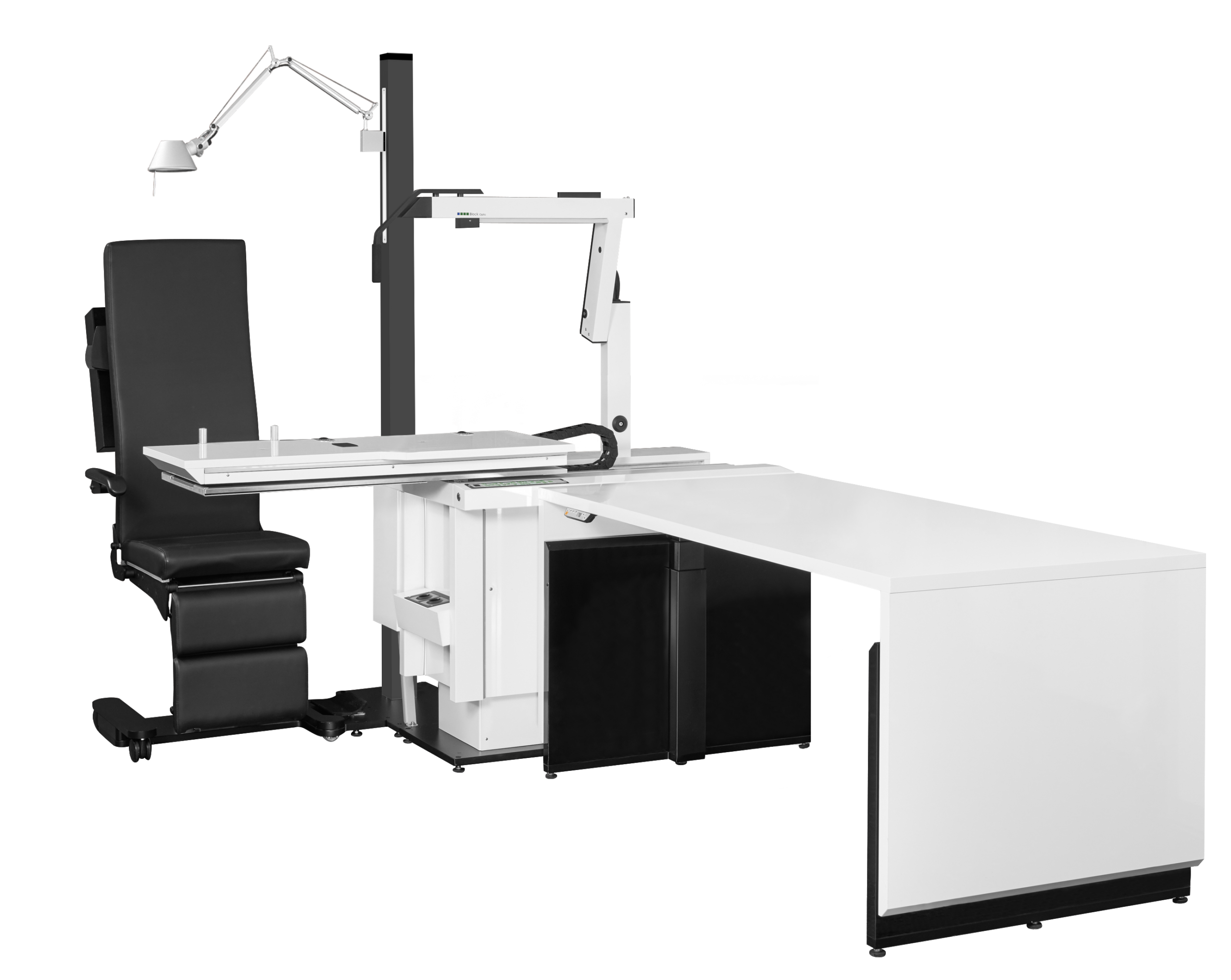

Example configuration of Innovario® with Neo® patient chair and height-adjustable desk
Innovario®

Maximum comfort for patient and examiner

Thanks to the individually adjustable telescopic table, phoropter arm and patient chair, it offers maximum comfort for both patient and examiner. The optional chair movement also makes it easy to examine and treat wheelchair users directly in their wheelchairs.

The modular design allows a tailor-made configuration – in terms of both technical features and colour and surface design. With a wide choice of colours and materials, the unit blends harmoniously into any practice design. Block Optic Design GmbH relies exclusively on durable, mechanically high-quality materials. All surfaces are resistant to wipe disinfection and meet the highest hygiene requirements.

71–96 cmElectric height adjustment, continuously variable
1–3Telescopic table positions
R / LAvailable as right- or left-hand unit

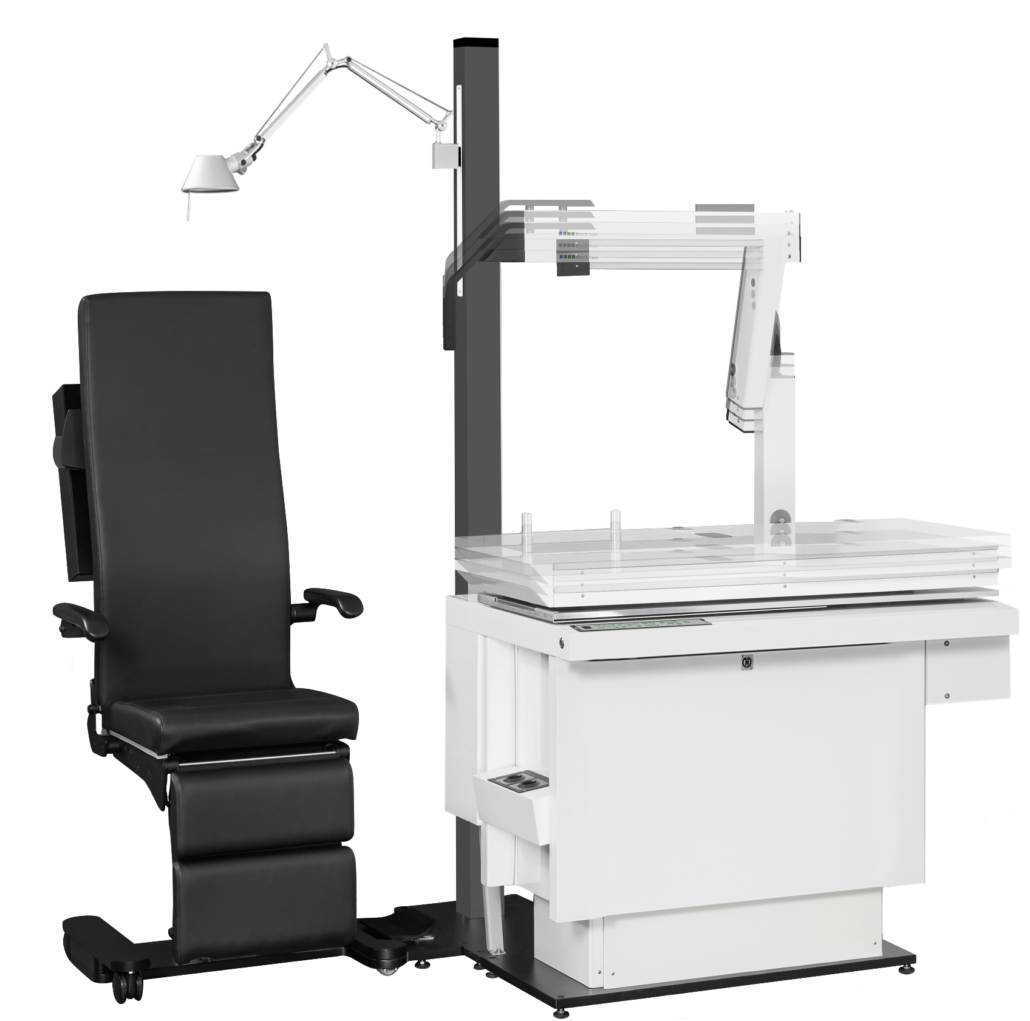

Ergonomics through height adjustment

Innovario® can optionally be equipped with electric height adjustment, so it can be set continuously to the ideal examination height. This creates an ergonomic workplace that makes examinations easier for patients of almost any height. The telescopic table – also electrically movable on request – offers space for one to three examination devices and ensures maximum flexibility.

  • Electric height adjustment – continuously adjustable from approx. 71–96 cm
  • Instrument table widening – suitable for all device positions, ideal for larger devices
  • Instrument table extension – optimised arm rest for indirect ophthalmoscopy or minor outpatient procedures at the slit lamp
Innovario® Ergonomics through height adjustment
Innovario®

Features

Available as a right- or left-hand unit with many options.

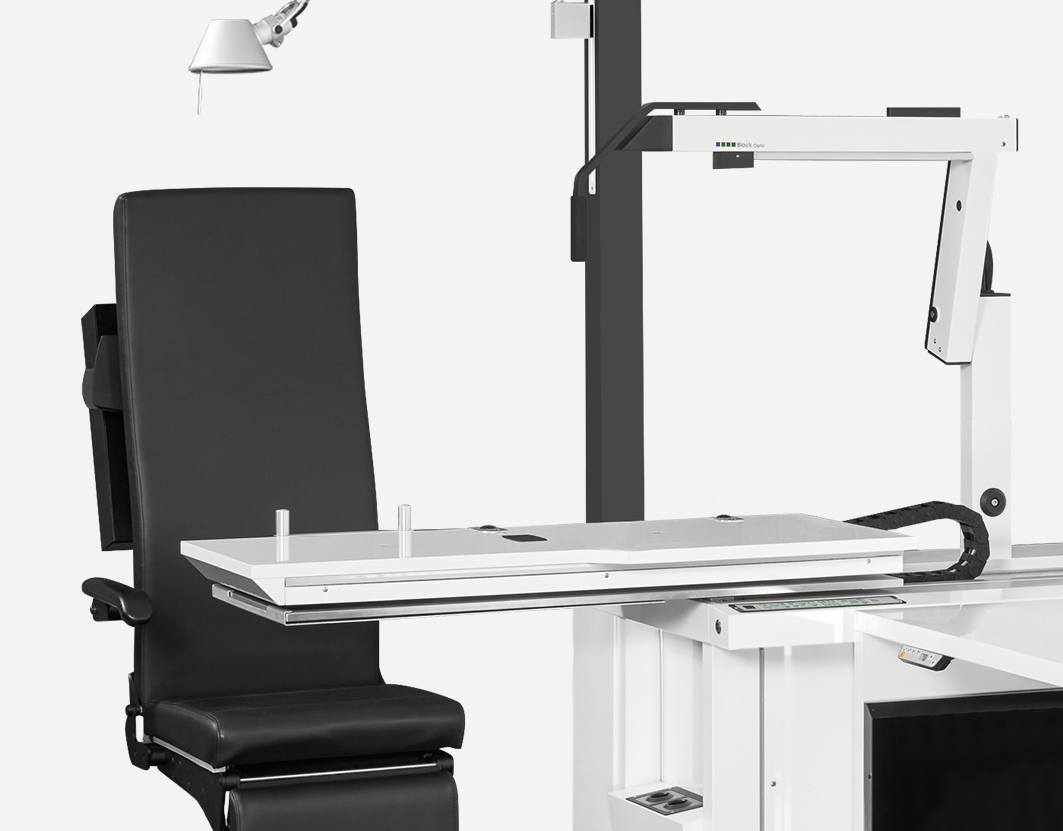

Telescopic table

Telescopic table

with one, two or three positions – manual or motorised

Phoropter rail & phoropter arm

Phoropter rail & phoropter arm

phoropter rail manually or electrically adjustable; physiological phoropter arm – pre-tilted, with or without stepless tilt device

Multifunction column
Multifunction column

Multifunction column

for task light, flat-screen holder, flat screen and projector mount

Comfort electronics

Comfort electronics

for controlling lighting, darkening, patient chair and chart display (optional) – with antibacterial membrane keypad, with or without backlight

Charging holder

Charging holder

for ophthalmic handheld devices

Wave tray

Wave tray

for ophthalmic handheld devices

Wireless chair movement

Wireless chair movement

for easy examination of wheelchair patients

Individuality is important to us
Individuality is important to us

Individuality is important to us

  • Individual plastic coating – available in numerous colours
  • Individual veneer finish – to match your practice design
  • Desks – optionally with or without electric height adjustment
  • Customised solutions – customer-specific designs and adaptations deviating from the standard range are always possible

Technical data

Length1028 mm
Depth 2nd pos.2165 mm
Depth 3rd pos.2660 mm
Standard height860 mm
Height adjustment710–960 mm
Weightca. 250–330 kg
Rated input voltage230 V, 50/60 Hz
Protection requirementEMVG/DIN EN 60601-1-2
Protection classMPG 1
Protection typeIP 20
Power consumptionca. 1400 VA
Right-hand version with special 2-position latching system
Right-hand version with special 2-position latching system
Right-hand version with special 3-position latching system
Right-hand version with special 3-position latching system

Video

Innovario®

Request your non-binding offer!

Our field service will be happy to advise you in person.
